Wireless Communication Testers

Rohde & Schwarz Network Emulator

Rohde & Schwarz offers class-leading signaling testers. We established our position as leading supplier of LTE communications testers with the popular, all-in-one R&S®CMW500 platform. Now we are building on the expertise that enabled its success with the high-performance R&S®CMX500 radio communication tester.

Secure the industry-leading wireless network emulators for your 5G NR and legacy technology challenges – from R&D design stages up to end-to-end application testing, production and conformance tests.

	Product name	Description

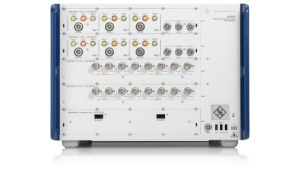

	R&S®CMX500 5G one-box signaling tester	LTE, 5G FR1 frequency range up to 8 GHz and FR2 millimeterwave frequency range up to 50 GHz in one instrument Support of 5G stand-alone mode non-stand-alone mode Can combine several present and future LTE and 5G 3GPP bands One scalable hardware platform with tailored and use-case specific configurations Web-based CMsquares user interface for RF, functional, application and protocol tests

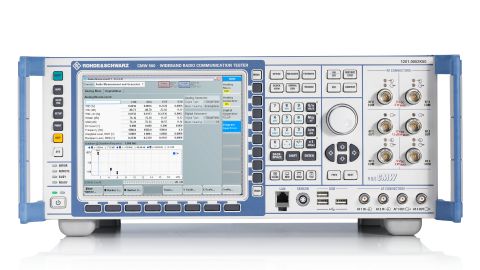

	R&S®CMW500 wideband radio communication tester	Multi-RAT signaling: LTE, WCDMA, GSM, WLAN, Bluetooth LTE-Advanced: 8DL CC up to 4x4/8x2 MIMO fading, 2 UL CA WLAN 11 a / b / g / n / ac / ax SISO and MIMO signaling test Internal server for application testing

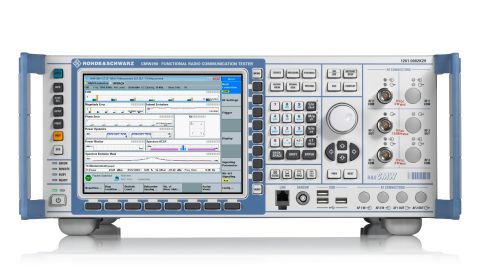

	R&S®CMW290	NB-IoT (R13-15, Cat. NB1/2) and LTE-M (R13-14,Cat.1,0,M1,M2) Legacy technology tests of GSM, WCDMA and LTE WLAN 11 a / b / g / n / ac / ax and Bluetooth signaling tests Internal server for application and e2e throughput testing Customizable, simple R&S®CMWrun test sequencer

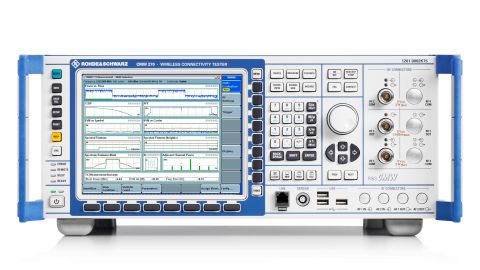

	R&S®CMW270 wireless connectivity tester	Bluetooth RF tester for Low Energy (BLE), Basic Rate and Enhanced Data Rate qualified by the Bluetooth-SIG WLAN 11 a / b / g / n / ac / ax SISO and MIMO signaling test Dual tester concept with multiple-standard RF measurements for WLAN SISO/MIMO and Bluetooth Server for WLAN application testing and customizable R&S®CMWrun test sequencer General purpose ARB generator for Bluetooth, WLAN, GNSS and various broadcast technologies

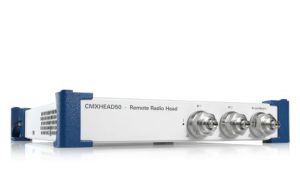

	R&S®CMXHEAD50 Remote radio head 50 GHz for signaling	Full frequency range from 21.84 GHz to 50.2 GHz Wide dynamic range with extra sensitive RX port Dual LO for best RF quality in TX and RX External local oscillator input ports to boost EVM Integrated mmWave RF switch matrix

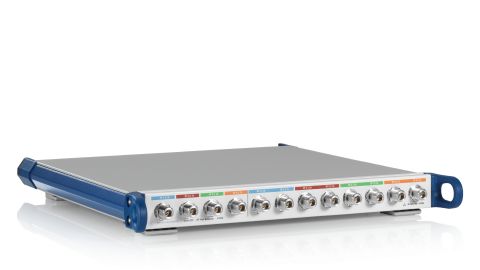

	R&S®CMX-Z25 CMX RF port extender	Doubles, triples or even quadruples the number of R&S®CMX500 ports Covers all relevant LTE and 5G FR1 frequency bands up to 8 GHz Excellent dynamic range due to low RF attenuation
