Signal Generators
Signal Generators
Analog
With the analog signal generator portfolio we cover the wide range of RF, microwave and mmWave frequencies.
Our selection of analog signal generators is characterized by the outstanding signal purity and performance as well as their functionality of the solutions; whether in the high end or midrange area.
The solutions benefit industries such as RF semiconductor, wireless communications, aerospace and defense, and also covers tasks featuring development, production and service, and more.
Vector
Rohde & Schwarz leverages decades of test and measurement excellence to provide you with a wide portfolio of RF vector signal generators. Our solutions range from the top-performance models capable of handling the most demanding signal generation tasks to midrange models featuring remarkably good RF characteristics, as well as compact solutions.
A common feature across different models in the solutions portfolio is high performance and their flexibility and suitability to a multitude of applications. Whether your task involves development verification and testing in wireless communication, GNSS, or mmWave applications, we have the right solution for you.
Analog Signal Generators
| Product Name | Frequency range | Level range |
I/Q modulation bandwidth |
SSB phase noise | Harmonics | |
|---|---|---|---|---|---|---|

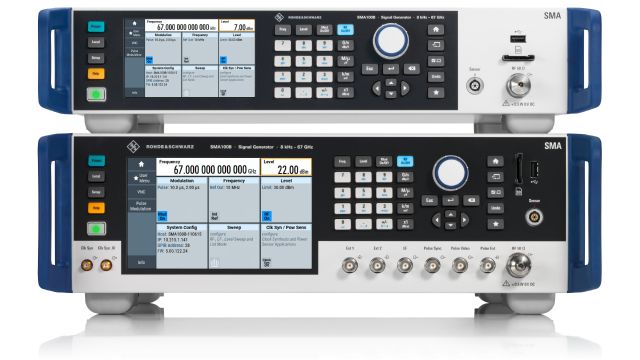

| R&S®SMA100B | 8 kHz - 67 GHz | –127 dBm - +30 dBm | - | < –147 dBc | < -60 dBc |

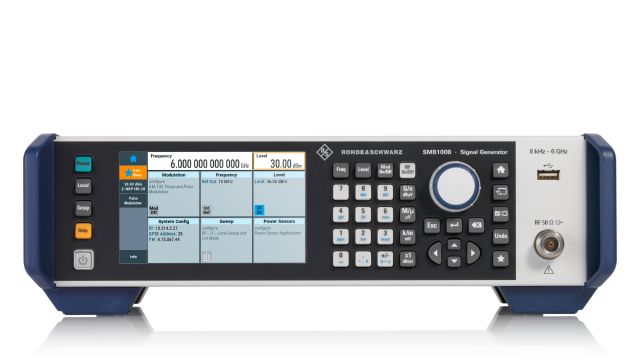

| R&S®SMB100B | 8 kHz - 6 GHz | –127 dBm - +26 dBm | - | < –126 dBc | < –30 dBc |

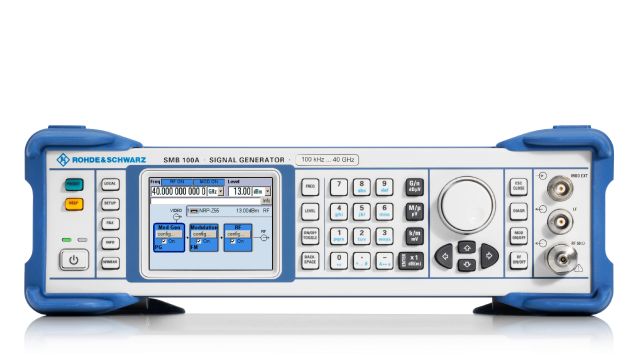

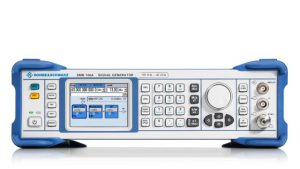

| R&S®SMB100A | 100 kHz - 40 GHz | –120 dBm - +18 dBm | - | < –122 dBc | < -58 dBc |

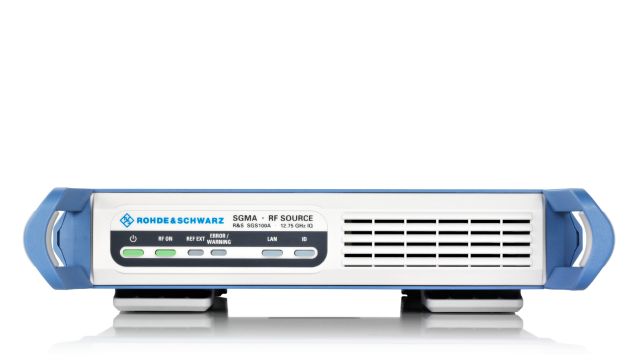

| R&S®SGS100A | 1 MHz - 12.75 GHz | –120 dBm - +15 dBm | 1 GHz ext. | < –126 dBc | < –30 dBc |

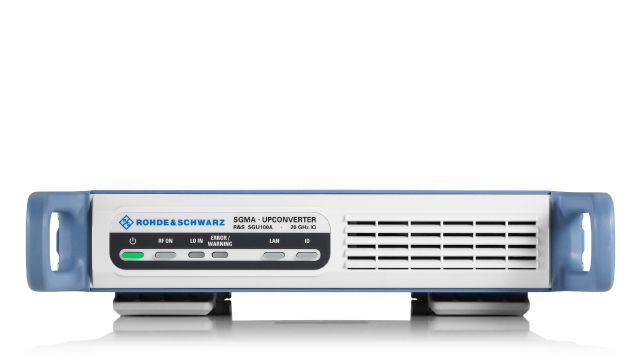

| R&S®SGU100A | 12 GHz - 40 GHz | –100 dBm - +15 dBm | 2 GHz ext. | < –126 dBc | < –30 dBc |
Vector Signal Generators
| Product Name | Frequency range | Level range |
I/Q modulation bandwidth |
SSB phase noise | Harmonics | |
|---|---|---|---|---|---|---|

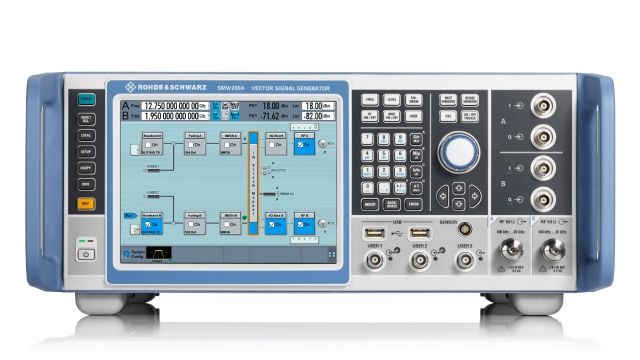

| R&S®SMW200A | 100 kHz - 67 GHz | –120 dBm - +18 dBm | 2 GHz internal 2 GHz external | < –137 dBc | < –55 dBc > 3.5 GHz |

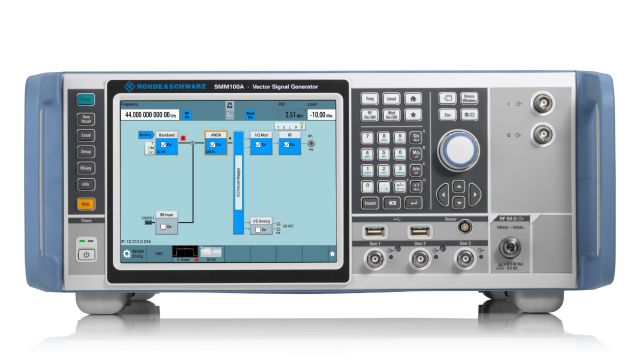

| R&S®SMM100A | 100 kHz - 44 GHz | –120 dBm - +18 dBm | 1 GHz internal 2 GHz external | < –129 dBc | < –55 dBc >3.5 GHz |

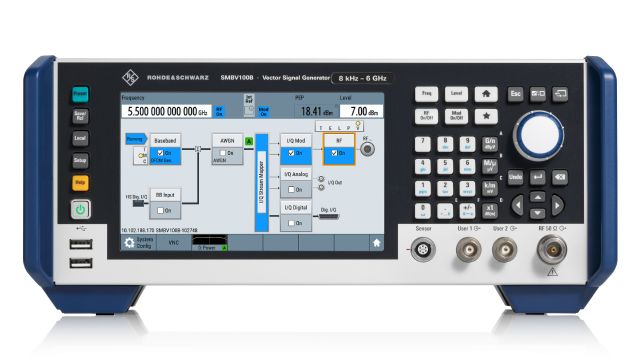

| R&S®SMBV100B | 8 kHz - 6 GHz | +20 dBm - –127 dBm | 1 GHz internal 2 GHz external | < –126 dBc | < –30 dBc |

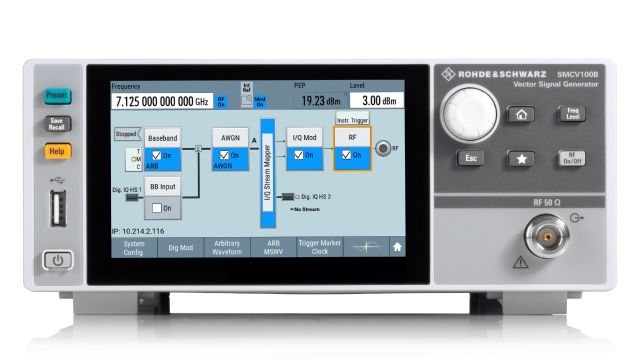

| R&S®SMCV100B | 4 kHz - 7.125 GHz | +20 dBm - –120 dBm | 240 MHz internal/external | < –125 dBc | < –30 dBc |

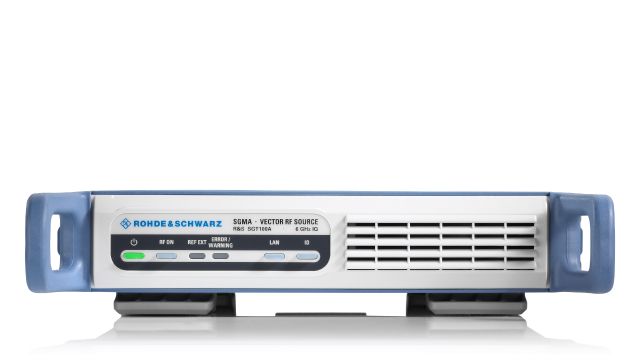

| R&S®SGT100A | 1 MHz - 6 GHz | +17 dBm - –120 dBm | 240 MHz internal 1 GHz external | < –126 dBc | < –30 dBc |
| R&S®SGS100A | 1 MHz - 12.75 GHz | –120 dBm - +15 dBm | 1 GHz ext. | < –126 dBc | < –30 dBc |
| R&S®SGU100A | 12 GHz - 40 GHz | –100 dBm - +15 dBm | 2 GHz ext. | < –126 dBc | < –30 dBc |

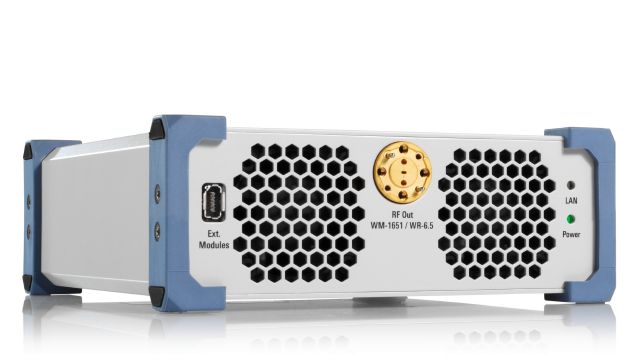

| R&S®FE170ST | 110 GHz - 175 GHz | –40 dBm - –15 dBm | 4 GHz | -122 dBc at 148 GHz and 1 MHz offset | < –50 dBc in specified frequency range |
