Signal and Spectrum Analyzers
Rohde & Schwarz Signal and Spectrum Analyzer
The Rohde & Schwarz signal and spectrum analyzer portfolio offers options ranging from low-cost, yet powerful 1 GHz analyzers to handheld and mid-range models to full-featured 85 GHz spectrum analyzers. Designed by the RF experts at Rohde & Schwarz, all spectrum analyzers feature exceptional signal integrity, high value and excellent reliability.
Benchtop Analyzers
| Product Name | Frequency | Phase noise |
DANL - at 1 GHz, RF preamplifier ON | Analysis bandwidth | |
|---|---|---|---|---|---|

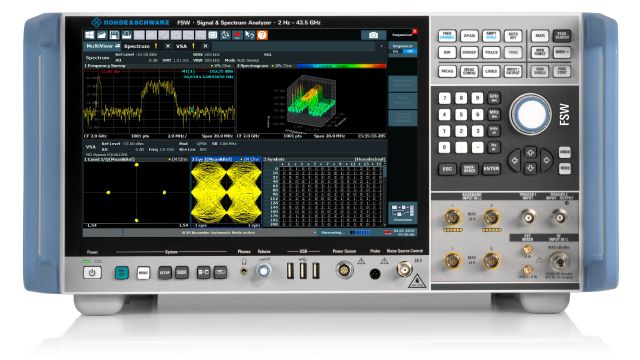

| R&S®FSW | 2 Hz - 8/13.6/26.5/ 43.5/50/67/85 GHz | < –127 dBc (1 Hz) (f = 1 GHz, 10 kHz offset) | < –166 dbm/Hz | 8.312 GHz |

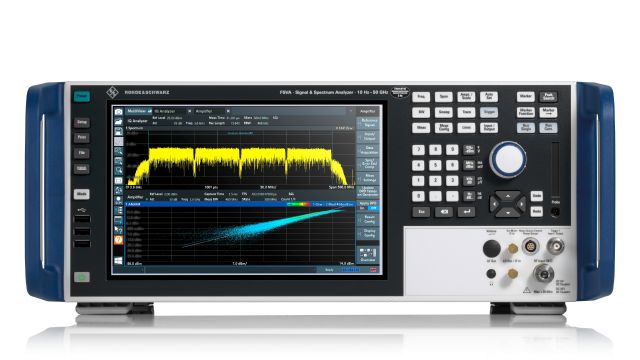

| R&S®FSVA3000 | 2 Hz - 4/7.5/13.6/ 30/44/50/54 GHz | < –127 dBc (1 Hz) (f = 1 GHz, 10 kHz offset, option B710) | < –164 dbm/Hz | 1 GHz |

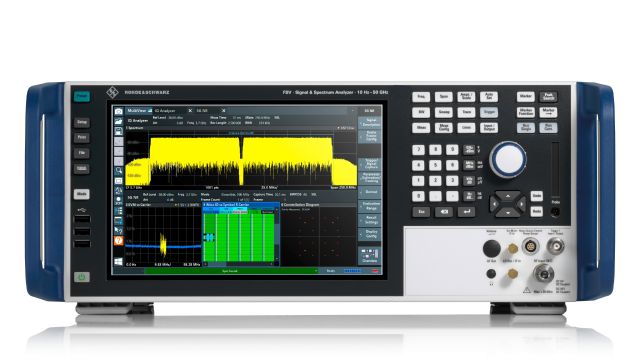

| R&S®FSV3000 | 10 Hz - 4/7.5/13.6/ 30/44/50 GHz | < –114 dBc (1 Hz) (f = 1 GHz, 10 kHz offset, option B710) | < –162 dBm/Hz | 200 MHz |

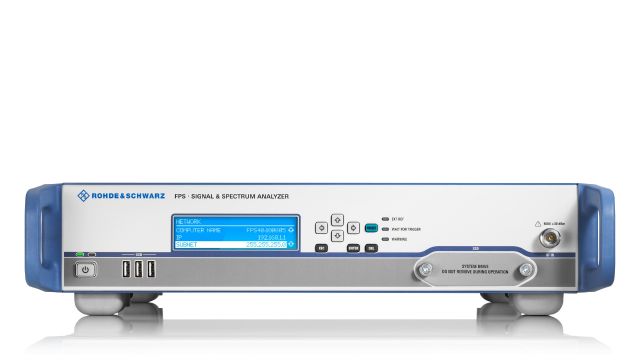

| R&S®FPS | 10 Hz - 4/7/13.6/ 30/40 GHz | < –106 dBc (1 Hz) (f = 500 MHz, 10 kHz offset) | < –160 dBm/Hz | 160 MHz |

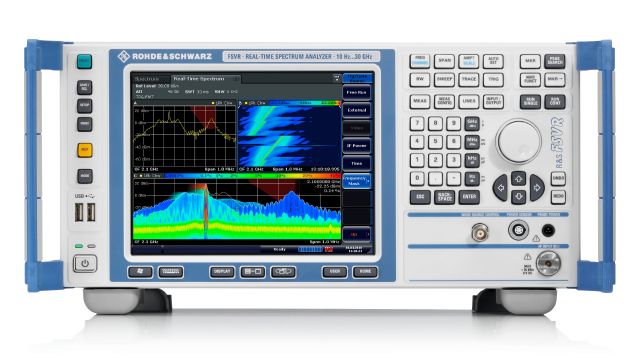

| R&S®FSVR | 10 Hz - 7/13.6/ 30/40 GHz | < –106 dBc (1 Hz) (f = 500 MHz, 10 kHz offset) | < –160 dBm/Hz | 40 MHz |

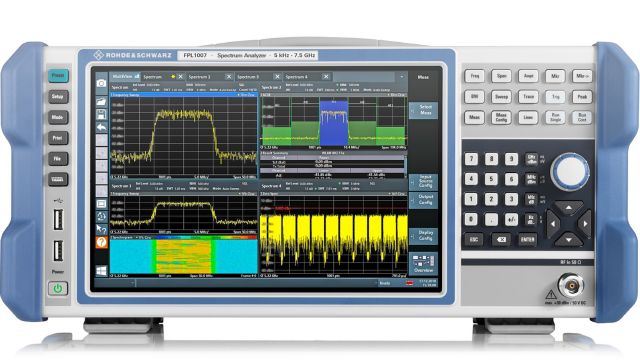

| R&S®FPL1000 | 5 kHz - 3/7.5/ 14/26.5 GHz | < –108 dBc (1 Hz) (f = 1 GHz, 10 kHz offset) | < –163 dBm/Hz | 40 MHz |

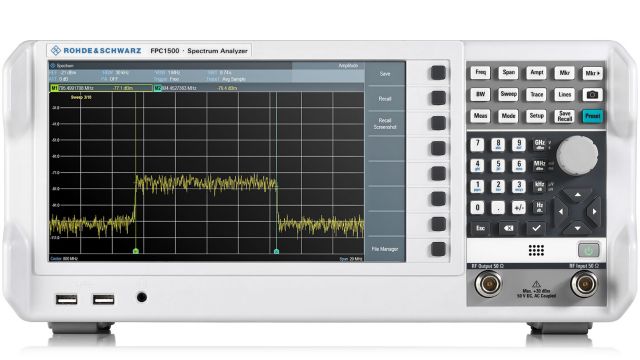

| R&S®FPC | 5 kHz - 1/2/3 GHz | < -92 dBc (1 Hz) (f = 500 MHz, 30 kHz offset) | <-158 dBm/Hz FPC-B22 | - |

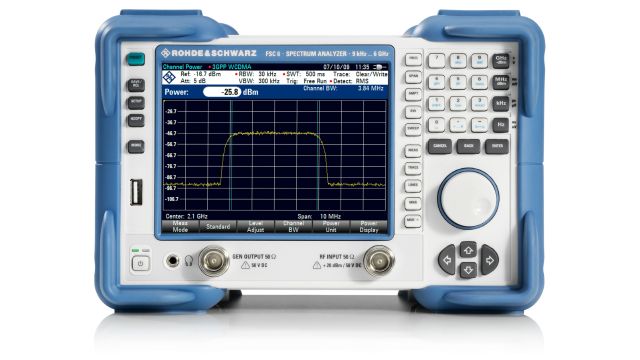

| R&S®FSC | 9 kHz - 6 GHz | < -95 dBc (1 Hz) (f=500 MHz, 30 kHz offset) | <-140 dBm/Hz FSC-B22 | - |
Handheld
| Product Name | Frequency | Phase noise - typ. |
DANL - at 2 GHz, RF preamplifier ON |
Analysis bandwidth | Instrument type | |
|---|---|---|---|---|---|---|

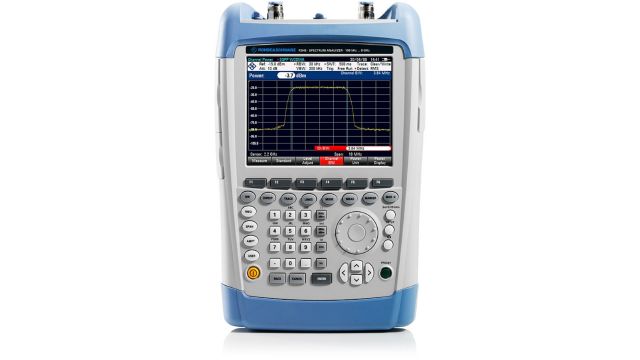

| R&S®FSH | 9 kHz - 3.6/4/ 8/13.6/20 GHz | -127 dBc (1 Hz) (f = 500 MHz, 1 MHz offset) | -163 dBm | 20 MHz | Signal and spectrum analyzer, Combination analyzer |

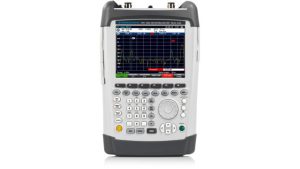

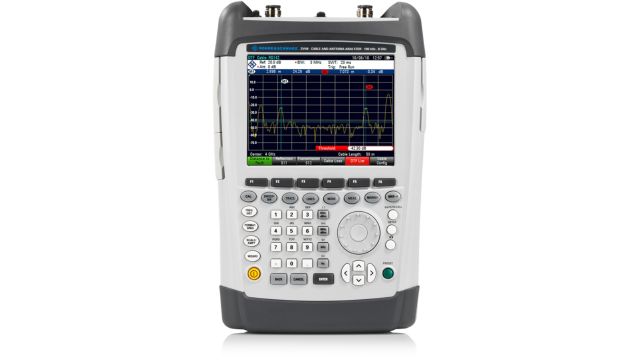

| R&S®ZVH | 100 kHz - 3.6/8 GHz | -120 dBc (1 Hz) (f = 500 MHz, 1 MHz offset) | -163 dBm | 20 MHz | Combination analyzer |

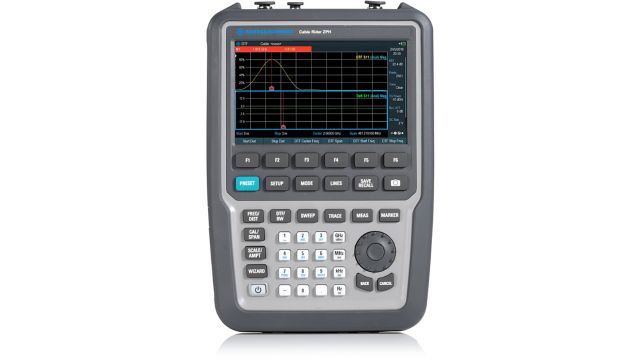

| R&S®ZPH | 5 kHz - 3 (4) GHz | -125 dBc (1 Hz) (f = 500 MHz, 1 MHz offset) | -163 dBm | 2 MHz | Combination analyzer |

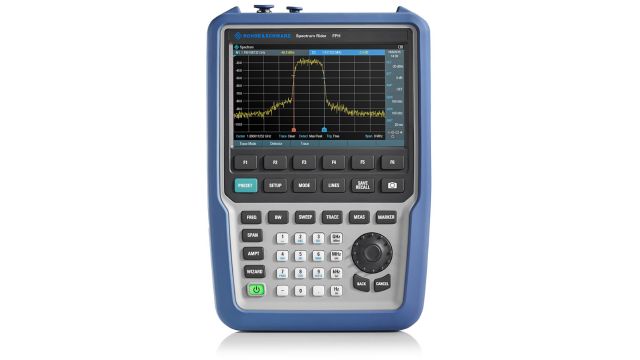

| R&S®Spectrum Rider FPH | 5 kHz - 2(4)/6(8)/ 13.6(20)/26.5(31)/ 44 GHz | -125 dBc (1 Hz) (f = 500 MHz, 1 MHz offset) | -163 dBm - -162 dBm | 2 MHz | Signal and spectrum analyzer |
