Meters and Counters
Meters and counters
Master your test and measurement tasks with confidence using the meters and counters from Rohde & Schwarz. Building on decades of T&M excellence, our portfolio features solutions with class-leading performance, speed and accuracy. Rohde & Schwarz can help you obtain measurements of great precision, whether they call for exact and reliable levels in voltage, current, power, frequency, impedance or temperature.
Rohde & Schwarz
| Product group | Description | |
|---|---|---|

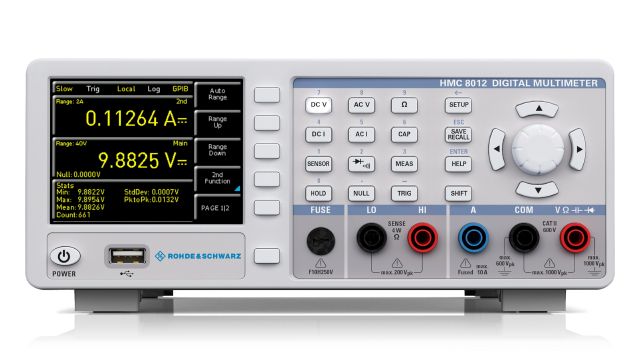

| Digital multimeters | Compact, accurate and easy-to-use, the HMC8012 digital multimeter offers up to 200 measurements per second. |

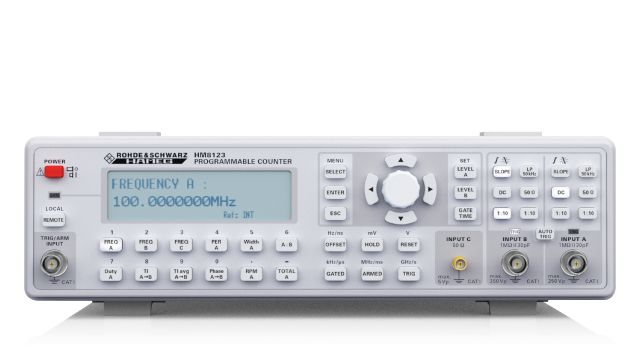

| Frequency counters | The HM8123 universal counter features high sensitivity and a frequency range up to 3 GHz. |

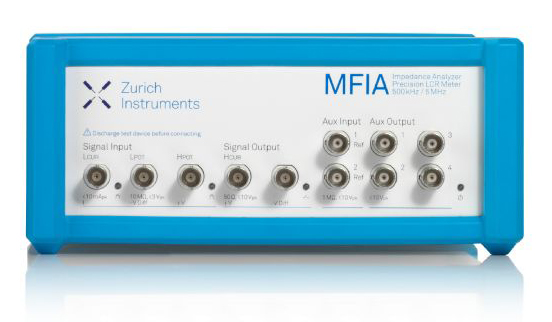

| LCR meters and impedance analyzers | Combine high accuracy and ease of use with our portfolio of LCR meters and impedance analyzers. |

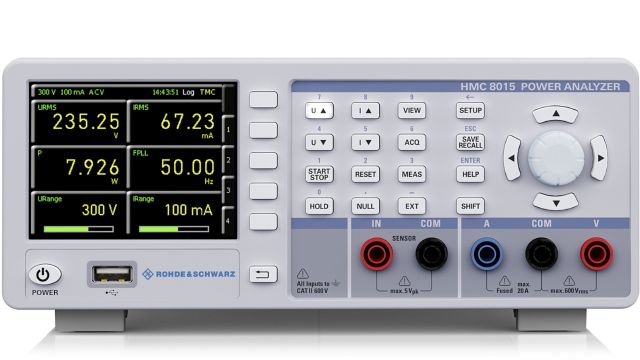

| Power analyzers | The compact R&S®HMC8015 power analyzer is ideal for AC/DC load and standby current characterization, without additional tools. |
| RF and microwave power meters | Ensure highest measurement accuracy and reliability in your current and future measurement tasks. |
| Model |
Measurement functions |
Frequency Range |
Test signal voltage (RMS) |
Test signal current |
Internal bias voltage | |
|---|---|---|---|---|---|---|

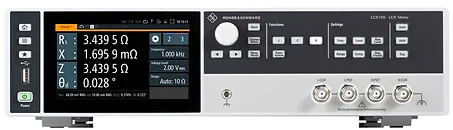

LCR Meter | LCX100 | Cp, Cs, Lp, Ls, D, Q, G, Rp, Rs, Rdc, R, X, Z, Y, Θd, Θr, B, M, N | DC, 4 Hz to 300 kHz | 10 mV to 10 V | 1 mA to 200 mA | 0 V - 10 V |
LCX200 | Cp, Cs, Lp, Ls, D, Q, G, Rp, Rs, Rdc, R, X, Z, Y, Θd, Θr, B, M, N | DC, 4 Hz to 500 kHz (1 MHz or 10 MHz optional) | ≤ 1 MHz: 10 mV to 10 V, ≤ 5 MHz: 50 mV to 2 V, > 5 MHz: 100 mV to 1 V | ≤ 1 MHz: 1 mA to 100 mA, > 1 MHz to ≤ 5 MHz: 1 mA to 20 mA, > 5 MHz: 1 mA to 10 mA | 0 V - 10 V |
