EMI Test Receivers
EMI test receivers
EMI test receivers; extremely accurate instruments designed to detect electromagnetic emissions rigorously, to ensure all emissions conform to the Standard being tested to. Configured to set up running the required tests for parameters defined by the Standards as simply as possible, including automated test routines. R&S EMI test receivers can be much more too, with a full signal and spectrum analyzer in the same instrument.
R&S EMI test receivers support the full range of commercial, automotive and military EMI Standards from all leading Standard authorities, including IEC, CISPR, CENELEC, ETSI, FCC, ANSI, RTCA and MIL-STD. All the latest amendments including the fast FFT-based time-domain scan that makes testing many times faster than conventional frequency scans, are all supported. The instruments cover all required frequency ranges up to 44 GHz, with frequencies up to 500 GHz supported by external mixers.
R&S supplies both full compliance and precompliance EMI test receivers. Fully compliant receivers implement all requirements of the above mentioned Standards, needed for certification testing. Precompliance receivers are an ideal cost/benefit solution for EMI testing during development. They implement bandwidths, limits and detectors defined by the standards, but do not entirely meet the exacting demands of full compliance.
EMI test receivers
| Product name | Application | Frequency range |
Displayed average noise level (typically, 1 MHz < f ≤ 1 GHz) |
Max. analysis bandwidth | |
|---|---|---|---|---|---|

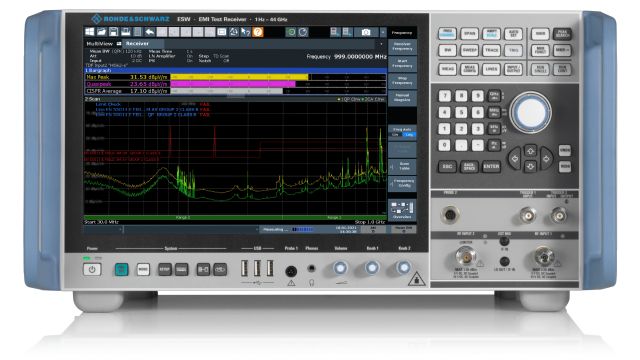

| R&S®ESW | The high end EMI compliance test receiver with top RF characteristics for super fast measurements with high bandwidth, multiple CISPR APD or external mixers. | 1 Hz to 8 / 26.5 / 44 GHz | -169 dBm | 1 Hz to 80 MHz |

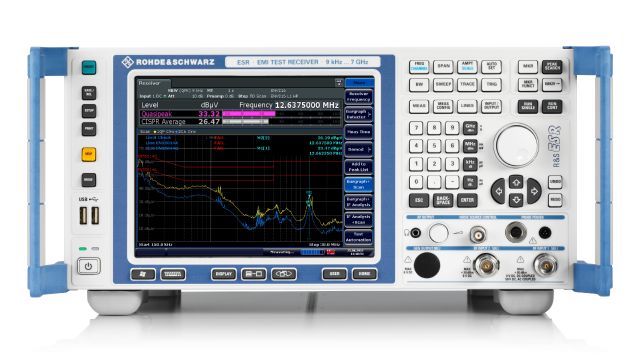

| R&S®ESR | The R&S®ESR is a compliance EMI test receiver with an optional DC input and battery pack enabling fast measurements in the lab as well as in the field. | 10 Hz to 3.6 / 7 / 26.5 GHz | -168 dBm | 10 Hz to 10 MHz, 40 MHz in zero span |

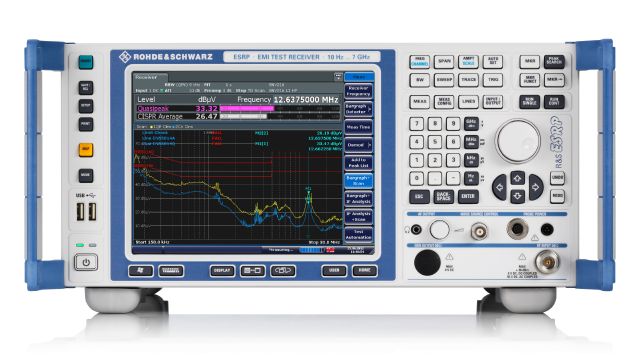

| R&S®ESRP | The R&S®ESRP is an EMI test receiver for diagnostic measurements during development and precompliance testing as a preparation for the final certification test. | 10 Hz / 9 kHz to 3.6 / 7 GHz | -162 dBm | 10 Hz to 10 MHz, 40 MHz in zero span |

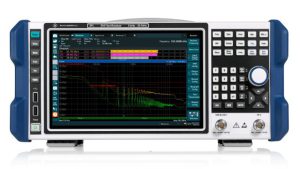

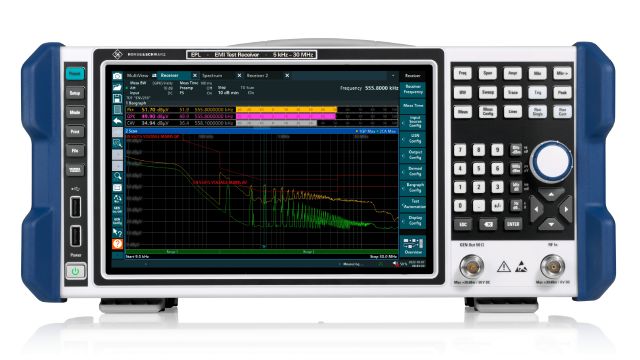

| R&S®EPL1000 | The R&S®EPL1000 is a compliance EMI test receiver for measurements up to 30 MHz with an optional DC input and a battery pack for fast measurements in the lab and in the field. | 5 kHz to 30 MHz | -156 dBm (up to 30 MHz) | 1 Hz to 10 MHz |

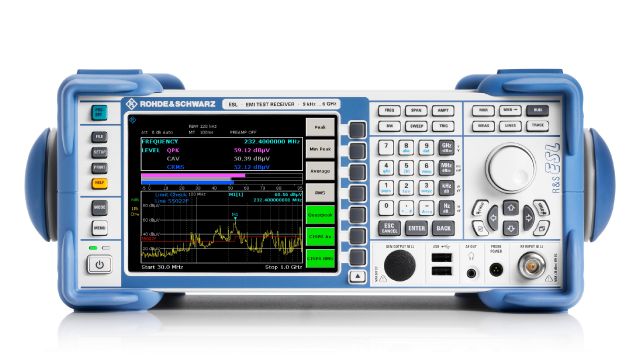

| R&S®ESL | The R&S®ESL combines an EMI test receiver and a spectrum analyzer in one instrument, making it versatile for diverse lab applications and EMI analysis. | 9 kHz to 3 / 6 GHz | -160 dBm | 10 Hz to 10 MHz, 20 MHz in zero span |
